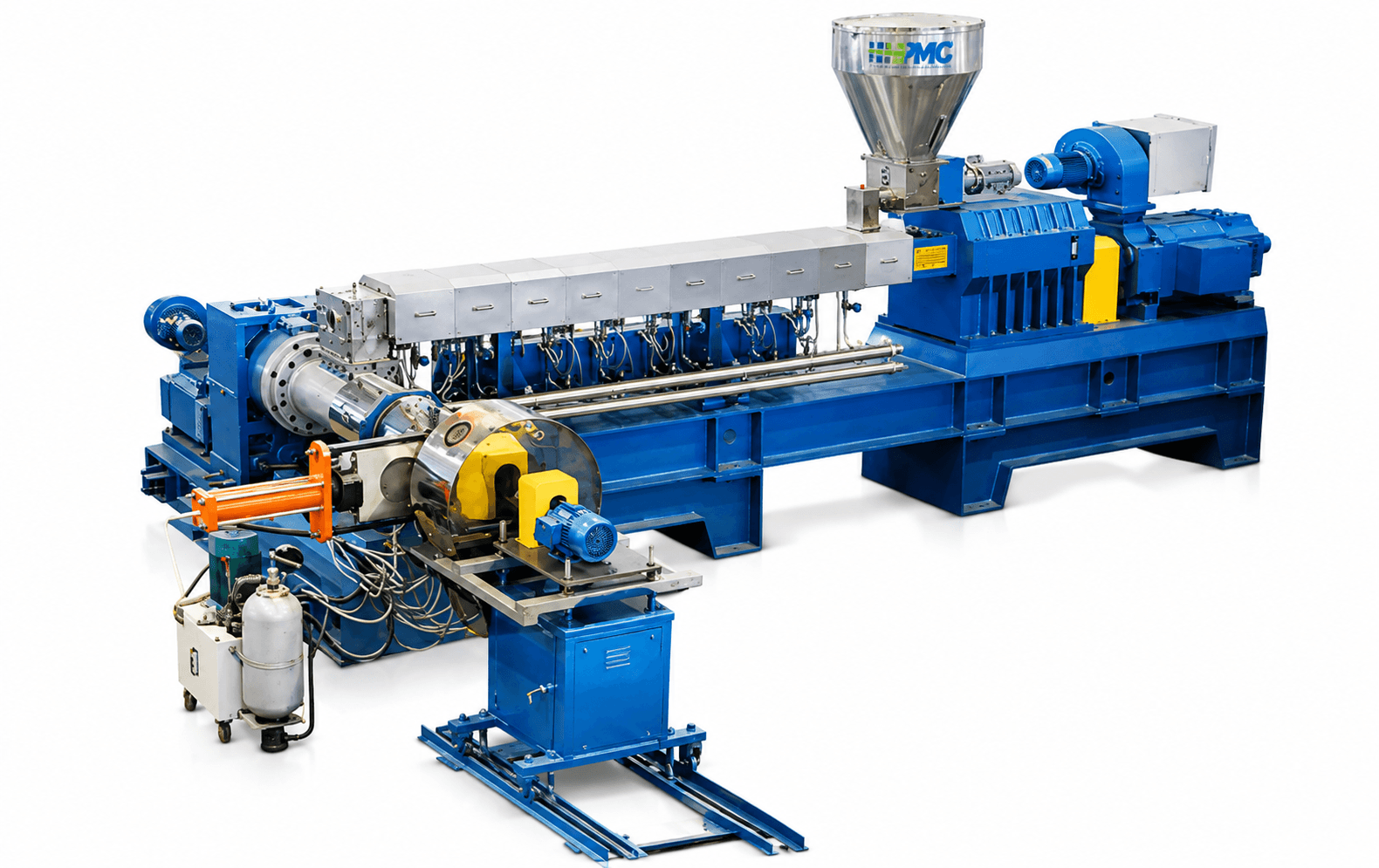

Corotating Twin Screw Extruder For Compounding & Recycling
HPMC Co-Rotating Twin Screw Extruders provide efficient compounding, masterbatch production, and polymer processing with excellent mixing, high filler loading, and reliable performance.
Co-Rotating Twin Screw Extruder - For Compounding & Recycling
HPMC Co-Rotating Twin Screw Extruders provide efficient compounding, masterbatch production, recycling, and polymer processing with superior mixing and plasticization performance.
Their modular design supports high filler loading, glass fiber reinforcement, and versatile material processing across various industrial applications.
Applications
- • Direct Compounding
- • PVC Cable Grade Compounds
- • Inline Compounding
- • Film & Sheet Extrusion
- • Compression Molding
- • Injection Molding
- • Recycling Applications
Key Features
- • Excellent Homogeneity
- • Superior Plasticization
- • Filling Modification
- • Recovery & Granulation
- • Modular Screw Design
- • Reliable Gearbox System
- • Die Face Cutter & Sieve
Benefits
- • High Production Efficiency
- • Lower Power Consumption
- • Up to 80% Talc Loading
- • Up to 50% Glass Fiber
- • Supports Multiple Feeders
- • Smooth Material Feeding
- • Versatile Material Processing
Technical Specifications
| MACHINE MODELS | 20 | 30 | 35 | 50 | 65 | 72 | 92 |
|---|---|---|---|---|---|---|---|
| Screw Diameter (mm) | 21.7 | 30 | 35.6 | 50.5 | 62.4 | 71.2 | 91 |
| Max Rotary Speed (RPM) | 600 | 400 | 600 | 500/600 | 400/500 | 400/500 | 400/500 |
| Main Motor Power (kW) | 4 | 11 | 11/15 | 37/45 | 55/75 | 90/110 | 220/250 |
| L/D Ratio | 32-40 | 28-48 | 32-48 | 32-48 | 32-48 | 32-48 | 32-40 |
| Capacity (kg/h) | 2-10 | 5-30 | 10-80 | 20-150 | 100-300 | 300-600 | 600-1000 |
