High Speed Two Layer Cable Plant
We manufacture and export plastic processing machinery like Plastic Extruder, Twin Screw Extruder, PVC Pipe Plant, Pipe Extruder, HDPE Pipe Plant, Recycling machine, Plastic Reprocessing Plant, Co-Rotating Extruder, Drip Irrigation, Compounding Extruder, Pipe Machinery, PVC Casing Caping Machinery, Plastic Profile Machinery, LLDPE Pipe Plant and all kinds of Extrusion Machinery and Plastic Machinery.

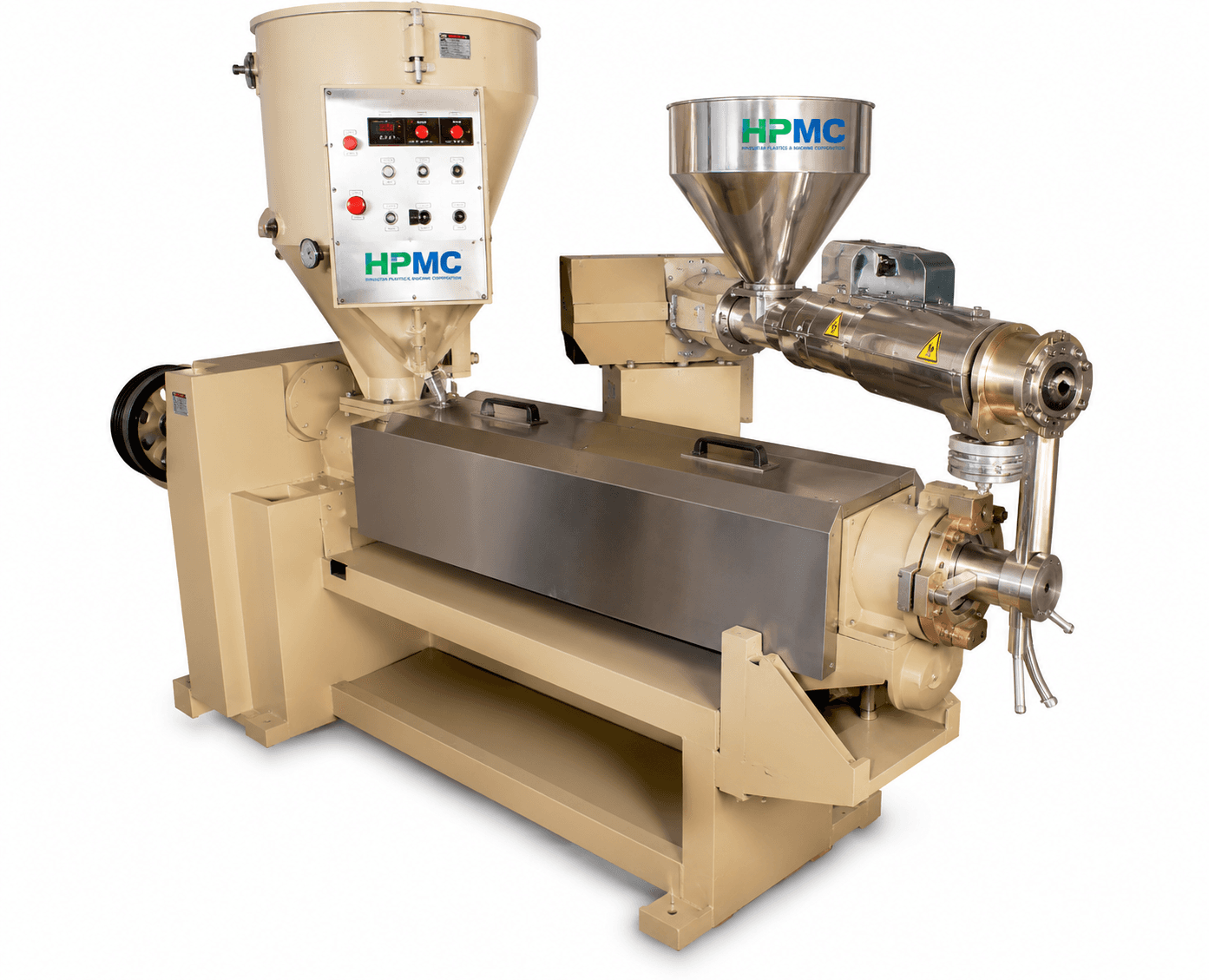

Extruder Specifications
| MODEL | MOTOR LOAD | MAX RPM | L/D RATION | HEATING POWER (KW) | PROD.KG./HR(PVC) | PROD.KG./HR(XLPE) |
| 45/30 | 10/5 | 70/70 | 26/26 | 10/5 | 60 | - |
| 45/45 | 10/10 | 70/70 | 26/26 | 10/10 | 80 | 50 |
| 65/45 | 20/10 | 70/70 | 26/26 | 12/10 | 120 | 85 |
| 100/65 | 40/20 | 60/70 | 26/26 | 22/12 | 280 | 200 |
Two Layer DIE HEAD
Double Pass Type Cooling Unit
- Stainless Steel construction
- Cable is repeatly wrapped around the deflection pulley
- Water flow controlled by manually adjusted valves
Capstan
- Efficient transmission of the tractive forces
- Smooth transmission force
- Essential for the best possible production
- Cable diameter ranges from 10 mm to 50 mm.
| HC400 | HC 630 | HC 800 | HC 1000 | |
| Wheel Dia | 400 | 630 | 800 | 1000 |
| Max. Traction Force (Kg.) | 200 | 500 | 800 | 1000 |
| Max. Dia of cable (mm) | 10 | 20 | 30 | 40 |
| Max speed (m/min) | 400 | 250 | 150 | 80 |
| AC Drive (HP) | 2 | 3 | 5 | 75 |
Screw Design
- Barrier design of Screw gives homogeneous mixing
- Groove design of barrel gives high output
- HPMC Extruder give high output value with excellent linearity. Extruders are fitted with powerful air blowers with jackets for perfect temperature control
- Efficient production over a wide product range.
- Excellent result for insulation grade PVC, Sheathing grade PVC, XLPE, LDPE, FRLS and Nylon.
Extruder Specifications
| MODEL | MOTOR LOAD (HP) | MAX RPM | L/D RATIO | HEATING POWER (KW) | PROD.KG./HR (PVC) | PROD.KG./HR (XLPE) |
| HPMC30 | 5 | 70 | 26 | 5 | 20 | - |
| HPMC45 | 10 | 70 | 26 | 10 | 40 | 25 |
| HPMC65 | 20 | 70 | 26 | 12 | 80 | 60 |
| HPMC75 | 30 | 70 | 26 | 16 | 120 | 90 |
| HPMC90 | 40 | 60 | 26 | 20 | 150 | 115 |
| HPMC100 | 40 | 60 | 26 | 22 | 200 | 140 |
| HPMC120 | 60 | 60 | 26 | 30 | 350 | 250 |
Cross-Head
- Fixed center or Die center
Haul-off Caterpillar
- Pneumatically operated
- Irregularities can easily pass through
- Perfectly synchronized with the main extruder.
| CAT-4 | CAT-8 | CAT-12 | CAT-16 | CAT-20 | |
| Max Line Speed | 200 | 160 | 125 | 100 | 80 |
| Max Traction Force | 400 | 800 | 1200 | 1600 | 2000 |
| Max Cable Opening | 60 | 100 | 120 | 160 | 160 |
| Gripping Length | 900 | 1200 | 1500 | 1800 | 2100 |
| Width of Belt | 80 | 100 | 120 | 160 | 160 |
| Drive ( HP) | 3 | 5 | 7.5 | 10 | 15 |
